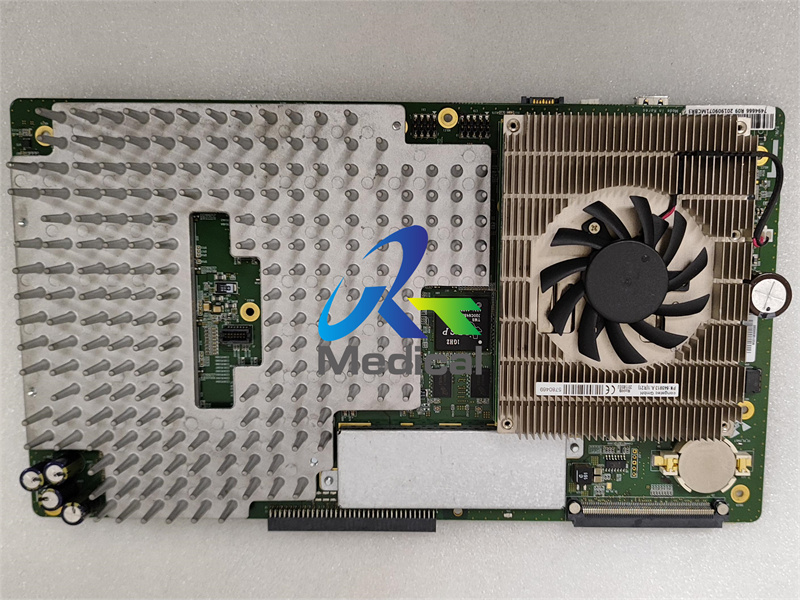

About GE LOGIQ P9 MCB Board

1. Basic functions and location of MCB Board
Function: MCB Board is a key component in GE LOGIQ P9 ultrasound diagnostic system, which is responsible for processing and controlling multiple core functions of the system. Specifically, it may involve signal reception, processing, conversion and communication with other hardware components (such as display, probe, etc.).
Location: According to publicly released information, MCB Board is usually located at the back of the machine, and the rear shell screws need to be removed to remove the shell, and then access the MCB Board inside the chassis.

2. Failure and replacement of MCB Board
Failure phenomenon: When GE LOGIQ P9 has no display or signal output problems when it is turned on, MCB Board may be one of the sources of failure. For example, there is a case showing that after pressing the power button, the display and touch screen show no signal, and it is judged that the MCB Board is faulty after inspection.
Replacement steps:
Remove the shell screws at the back of the machine and remove the shell.
Unscrew the chassis cover screws and remove the cover to access the inside of the chassis.
Before replacing the MCB Board, you may need to remove the probe and the shell that fixes the probe lock to disassemble the board.
Remove the entire interface board (the part connected to the MCB Board and MDC Board), and then replace the MCB Board.
After replacement, reassemble and test the machine function.

3. Precautions
Professional operation: Since the replacement of the MCB Board involves complex hardware operations, it is recommended to be performed by professionally trained technicians or engineers.
Spare parts source: Make sure to use original or certified spare parts to ensure the performance and stability of the equipment.
Fault diagnosis: Before replacing the MCB Board, a comprehensive fault diagnosis should be performed to confirm that the fault is indeed caused by the MCB Board to avoid unnecessary replacement and cost waste.
