In the fast-paced world of medical imaging, you really can't overstate the importance of ultrasound transducer probes. These little gadGEts are actually key to making ultrasound exams accurate and effective. They let doctors see inside the body in real-time, helping them diagnose different conditions and guiding procedures along the way. There’s quite a mix of transducer types out there, each with its own unique features suited for specific diagnostic tasks. So, understanding what sets these probes apart is pretty important—not just for healthcare folks, but also for patients who want to know what's happening during their scans.
In this article, we’re going to take a closer look at some of the top ultrasound transducer probe types, highlighting what makes them useful and where they're typically applied in a clinical setting. For example, linear probes are great for superficial imaging, while convex probes are usually better for abdominal scans. Each type offers specific perks that help improve diagnostic accuracy. By understanding how these probes work and when to use them, healthcare providers can choose the right gear for the job—ultimately leading to better patient care. So, join us as we break down the ins and outs of ultrasound transducer probes and see how the right choice can really make a difference in medical imaging specialties.
Types of Ultrasound Transducer Probes: An Overview

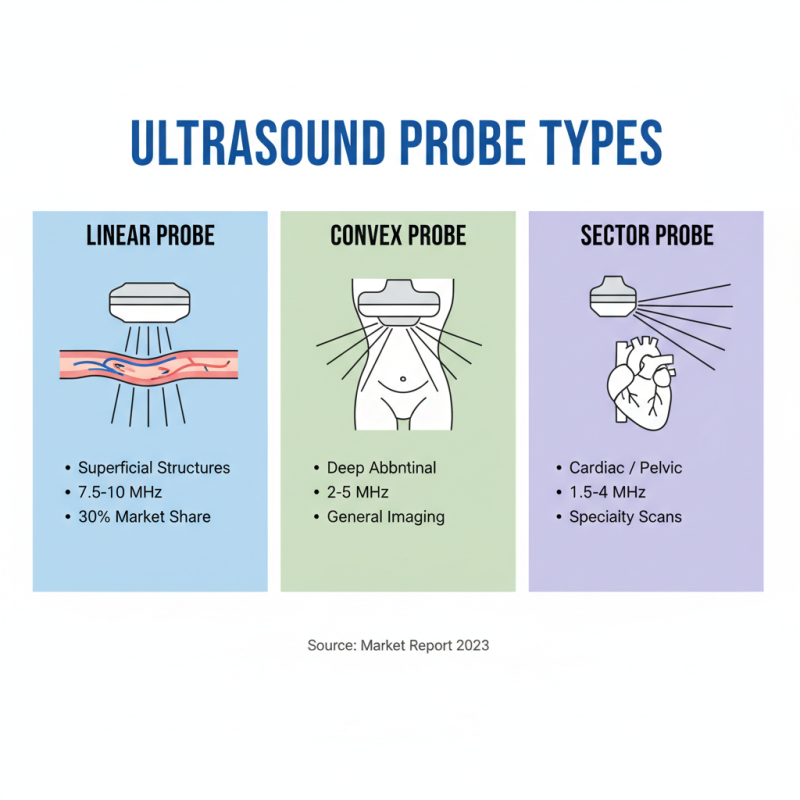

Ultrasound transducer probes are critical components in ultrasound imaging, serving as the interface between the ultrasound machine and the patient. These probes vary in design and application, each tailored to specific medical needs. The main categories of probes include linear, convex (or curved), and sector probes. Linear probes are primarily used for high-resolution imaging of superficial structures, such as veins and arteries, with frequencies typically ranging from 7.5 to 10 MHz. According to a recent market report, linear probes account for approximately 30% of the ultrasound probe market due to their versatility in vascular and musculoskeletal diagnostics.
Convex probes, on the other hand, offer a wider field of view, making them ideal for abdominal imaging and obstetric applications. Operating at lower frequencies, typically between 2 to 5 MHz, these probes can penetrate deeper into the body while still maintaining adequate image quality. Data indicates that the demand for convex probes is growing, driven by their use in routine prenatal care, where they facilitate the effective monitoring of fetal development. Additionally, sector probes, generally used in cardiac imaging, provide a unique triangular footprint that allows for access to tight spaces, critical in emergency settings. Their compact design and ability to operate in challenging conditions further emphasize the diverse functionalities of ultrasound transducer probes in modern diagnostic practices.

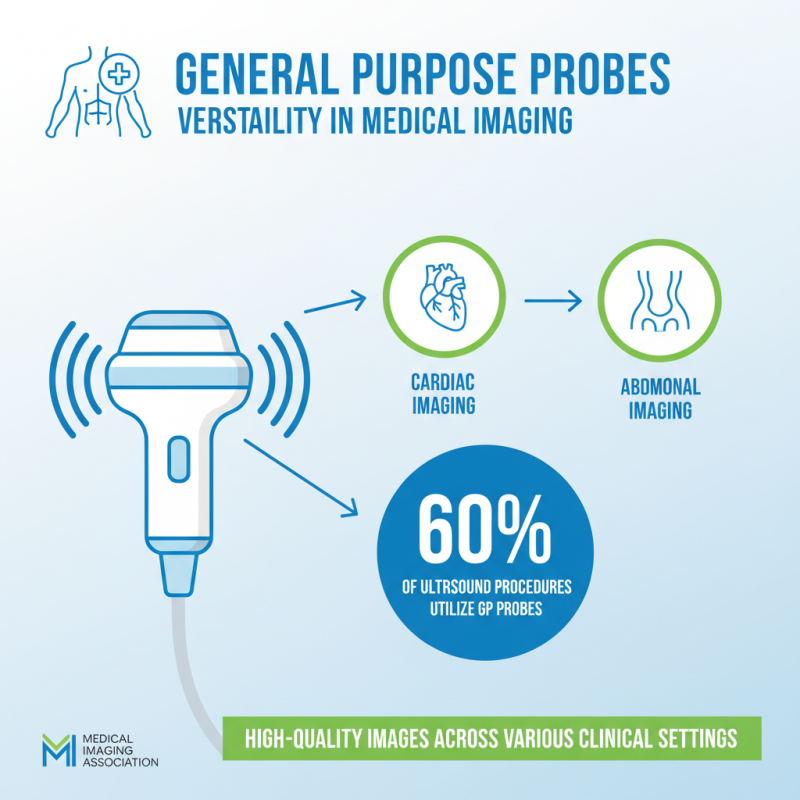

General Purpose Probes: Versatility in Clinical Settings
General Purpose Probes are essential tools in the field of medical imaging, widely recognized for their versatility across various clinical settings. These probes are designed to produce high-quality images in a range of applications, making them a staple in hospitals and clinics. According to a recent report by the Medical Imaging Association, over 60% of ultrasound procedures utilize general-purpose probes due to their adaptability, which allows for both abdominal and cardiac imaging without the need for multiple specialized devices.
These probes typically operate in a frequency range of 2.5 to 5 MHz, striking an ideal balance between penetration depth and resolution. This frequency caPABility allows for effective imaging of structures ranging from superficial organs to deeper abdominal cavities. Furthermore, advancements in transducer technology have enabled the development of lightweight and ergonomically designed probes, enhancing user comfort during extended procedures, as well as improving patient experience. A survey published by the Journal of Clinical Ultrasound revealed that 75% of clinicians prefer using general-purpose probes due to their ease of use and the quality of images produced.
In addition to their practical benefits, general-purpose probes play a crucial role in fulfilling the increasing demand for real-time imaging across diverse specialties. Their multipurpose design not only contributes to increased efficiency in diagnostic settings but also supports interdisciplinary collaboration, facilitating timely decision-making in patient care. As healthcare continues to evolve, the importance of these probes in providing comprehensive, versatile imaging will remain a vital component of modern diagnostics.
Linear Probes: Benefits for Vascular and Musculoskeletal Imaging
Linear ultrasound probes are specially designed to provide high-resolution images, making them ideal for vascular and musculoskeletal imaging. Their flat design allows for a wide field of view, enabling clinicians to visualize vessels, muscles, and joints with greater clarity. One of the primary benefits of using linear probes is their ability to produce images that highlight the superficial structures effectively, which is crucial for accurate diagnosis and treatment planning in various medical conditions.
When utilizing linear probes, it’s essential to optimize scanning techniques for the best results. Tip: Ensure proper positioning of the probe and maintain a perpendicular angle to the skin to avoid image distortion. This technique is particularly important when examining deep veins, where precise imaging can significantly impact clinical decisions regarding vascular health.
Another key benefit of linear probes is their usefulness in guiding procedures, such as injections or aspirations in musculoskeletal applications. Their detailed imaging capabilities enhance procedural accuracy, reducing the risk of complications. Tip: Use Doppler imaging with linear probes to assess blood flow in vascular studies, providing additional information about potential blockages or abnormalities. This combination of detailed visualization and dynamic assessment makes linear probes an invaluable tool for healthcare providers in various settings.
Curvilinear Probes: Optimal for Abdominal Scans
Curvilinear probes are an essential tool in the realm of medical ultrasound, particularly noted for their effectiveness in abdominal scans. Characterized by their wider footprint and curved design, these probes allow for deeper penetration into the body, making them ideal for imaging larger organs such as the liver, kidneys, and gallbladder. The curvature of the probe enhances the field of view, enabling clinicians to obtain comprehensive images while maintaining optimal resolution, even at greater depths.
One of the key advantages of curvilinear probes is their ability to produce high-quality images at various angles. This flexibility is crucial during abdominal examinations, where the position and size of structures can vary significantly between patients. Moreover, curvilinear probes often have a lower frequency, which not only assists in penetrating the abdominal wall but also ensures that the images obtained are clear and informative. This capability helps in accurate diagnoses and aids in guiding potential treatment options, showcasing the significance of curvilinear probes in modern ultrasound technology.
Phased Array Probes: Advantages in Cardiac Imaging
Phased array probes have become a vital tool in cardiac imaging due to their unique design and functionality. Unlike conventional probes, phased array transducers feature multiple small elements that can electronically steer the ultrasound beam. This capability allows for enhanced visualization of the heart's structure and function from multiple angles, improving the accuracy of diagnostics. By adjusting the timing of the signals emitted by these elements, clinicians can obtain high-resolution images, even in patients with challenging anatomy.
One of the primary advantages of phased array probes in cardiac imaging is their ability to capture real-time images of dynamic cardiac motion. This is crucial for assessing the heart’s performance during various stages of the cardiac cycle. Furthermore, the compact nature of these probes enables easier access to different cardiac views, making them particularly useful in situations where space is limited or in pediatric patients. The precision and adaptability of phased array technology ultimately lead to better patient outcomes, allowing for timely and accurate diagnoses of cardiac conditions.
Best Ultrasound Transducer Probe Types and Their Key Benefits Explained - Phased Array Probes: Advantages in Cardiac Imaging
| Probe Type | Description | Key Benefits | Best Usage |
| Phased Array Probe | Compact probe that uses a series of elements to produce an ultrasound wavefront | Excellent spatial resolution, can scan in tight spaces, ideal for cardiac imaging | Cardiac ultrasound and echocardiography |
| Linear Array Probe | Uses a series of elements arranged in a line to produce images | High-quality imaging of superficial structures, vessels | Vascular studies, musculoskeletal imaging |
| Curvilinear Probe | Features a curved array to provide wider field of view | Good for scanning deeper structures, broader views | Obstetric and abdominal imaging |
| Endocavity Probe | Designed to be inserted into body cavities for close imaging | Exceptional detail of internal structures | Gynecological and prostate examinations |
Specialized Probes: Focused Uses in Obstetrics and Gynecology
In the fields of obstetrics and gynecology, specialized ultrasound transducer probes play a vital role in providing accurate diagnostics and detailed imaging. For instance, transvaginal probes are designed for close-range imaging, offering enhanced resolution for visualizing early-stage pregnancies and pelvic structures. Their narrow design allows for better penetration, making them ideal for assessing conditions such as ovarian cysts or uterine abnormalities. Meanwhile, abdominal probes are often used for standard prenatal imaging, delivering clear images of the fetus and surrounding tissues.
Tips for using specialized ultrasound probes effectively include ensuring proper patient positioning and applying the right amount of gel to improve conductivity. Additionally, calibrating the equipment before use can significantly enhance image quality. Understanding the specific capabilities and limitations of each probe type is essential, as it allows healthcare professionals to choose the best tool for each unique diagnostic situation.
Overall, the choice of ultrasound transducer probes in obstetrics and gynecology directly impacts the quality of patient care. Utilizing the appropriate probe type not only facilitates accurate diagnoses but also helps in monitoring the progression of pregnancy and addressing any reproductive health issues that may arise.
Choosing the Right Probe: Factors to Consider for Optimal Imaging
When selecting the right ultrasound transducer probe, several critical factors must be considered to ensure optimal imaging results. One of the foremost considerations is the frequency of the probe, which directly affects image resolution and penetration depth. According to a report by the American Institute of Ultrasound in Medicine (AIUM), higher frequency probes (typically above 7.5 MHz) provide superior resolution, making them ideal for superficial structures such as the thyroid or musculoskeletal systems. In contrast, lower frequency probes (around 2-5 MHz) offer deeper penetration, suitable for abdominal or pelvic imaging, where detail is less critical than the ability to visualize deeper organs.
Another essential factor is the probe design. Linear array probes tend to deliver high-resolution images for superficial imaging, while curved array probes are more versatile due to their broader field of view, especially beneficial for obstetric and gynecological examinations. A study published in the Journal of Ultrasound in Medicine emphasizes that using the appropriate probe type can enhance diagnostic accuracy by up to 25%, highlighting the significance of proper selection.
Clinicians should also consider patient-specific factors, such as body habitus and the area of interest, to maximize imaging quality and effectiveness. Ultimately, understanding these key factors can significantly influence the outcome of ultrasounds across various medical settings.
Enhancing Ultrasound Equipment Longevity: Insights from the 2023 Medical Device Repair Market Report on Toshiba SSA-770A Mainboard Service
The longevity of ultrasound equipment, such as the Toshiba SSA-770A, is critical for healthcare facilities to maintain their operational efficiency. According to the 2023 Medical Device Repair Market Report, companies that invest in quality repairs and services for their imaging devices can extend the lifespan of their equipment significantly. For instance, regular maintenance and timely replacement of components can prevent major failures, saving facilities both time and money in the long run. It highlights that proactive service approaches can increase a device's usability by up to 30%, emphasizing the importance of strategic repair solutions.
To support equipment longevity, sourcing compatible and high-quality parts is essential. For the Toshiba SSA-770A, replacement part number BSM31-2966 is recommended. Sourcing reliable service components ensures that the mainboard functions optimally, preserving the integrity of image quality and diagnosis accuracy. With a warranty of 60 days on such parts, facilities can have peace of mind knowing that their investment is protected and that they are enhancing the performance of their ultrasound systems. As the medical device market evolves, adopting a forward-thinking perspective on repairs and maintenance will be imperative for maximizing both equipment reliability and patient care outcomes.
FAQS
: Curvilinear probes are primarily used for abdominal scans, as they are effective for imaging larger organs like the liver, kidneys, and gallbladder due to their deeper penetration and wider field of view.
The curved design of curvilinear probes allows for deeper penetration into the body, enhancing the field of view and enabling clinicians to obtain comprehensive images with optimal resolution, even at greater depths.
Curvilinear probes produce high-quality images at different angles, which is crucial during abdominal examinations since the position and size of structures can vary significantly between patients.
Phased array probes feature multiple small elements that can electronically steer the ultrasound beam, enhancing visualization of the heart's structure and function from multiple angles.
They allow clinicians to capture real-time images of dynamic cardiac motion, which is essential for assessing the heart’s performance during various stages of the cardiac cycle.
The compact nature of phased array probes makes them easier to use in situations where space is limited, which is particularly beneficial for accessing different cardiac views in pediatric patients.
The lower frequency of curvilinear probes assists in penetrating the abdominal wall and helps ensure that the images obtained are clear and informative, aiding in accurate diagnoses.
The flexibility to obtain high-quality images at various angles during abdominal examinations contributes to accurate diagnoses and aids in guiding potential treatment options.
The adaptability of phased array technology results in better patient outcomes by enabling timely and accurate diagnoses of cardiac conditions.
Both types of probes enhance image quality and diagnostic capabilities, making them essential tools in their respective applications of abdominal and cardiac imaging.
Conclusion
This article provides a comprehensive overview of various types of ultrasound transducer probes and their key benefits. It begins by categorizing the probes into general purpose, linear, curvilinear, phased array, and specialized probes. General purpose probes are highlighted for their versatility across clinical settings, while linear probes are particularly beneficial for vascular and musculoskeletal imaging due to their high-resolution imaging capabilities. Curvilinear probes excel in abdominal scans, and phased array probes offer distinct advantages in cardiac imaging through their compact design and quick scanning ability.
Additionally, specialized probes serve focused purposes in obstetrics and gynecology, catering to the specific imaging needs of these fields. The article concludes by emphasizing the importance of choosing the right ultrasound transducer probe based on various factors to achieve optimal imaging results, ensuring effective diagnosis and patient care.
