Aloka SSD-4000 EP481200DE Backplane Board Ultrasound Board Repair

Aloka SSD-4000 EP481200DE Backplane Board Ultrasound Board Repair

1.P/N:  EP481200DE

2.Compatible system: Aloka SSD-4000

3.Warranty after fixed  about  60 days

Wide variety of parts, over 1000 pcs in stock, involved in popular brands and systems(GE, Hitachi Aloka,Philips,Siemens,Toshiba,Esaote......)

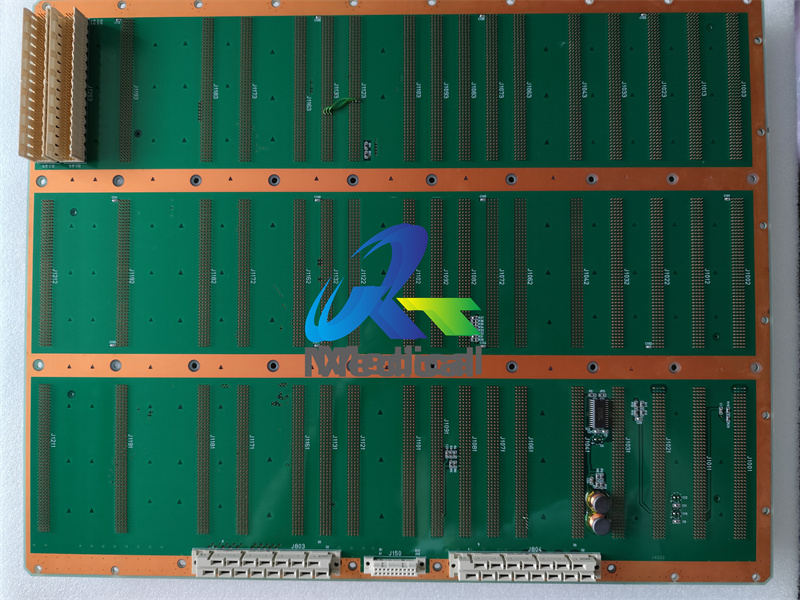

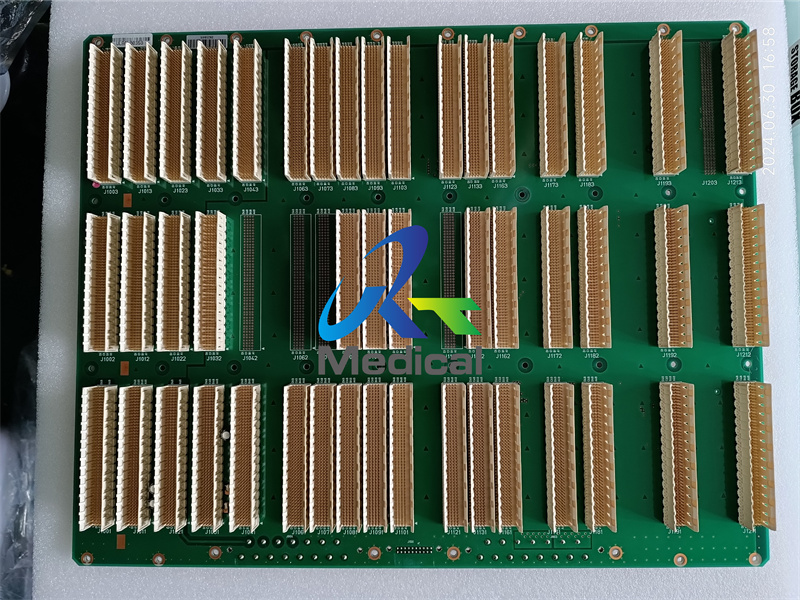

About Aloka SSD-4000 Backplane Board

1. Introduction to Aloka SSD-4000
Brand and model: Aloka SSD-4000
Purpose: Used for human ultrasound diagnosis and examination, it can detect the abdomen, heart, superficial tissues and small organs, peripheral blood vessels, etc.
Performance characteristics: It has advanced technologies such as 12-bit digital acoustic imager, multi-frequency imaging technology, high frame rate multi-beam processing and pure harmonic detection.
2. Overview of Backplane Board
Definition: The backplane board is a key component in electronic equipment, usually used to connect and support various plug-in cards, modules or subsystems, and provide a signal transmission path between them.
Function: In an ultrasound diagnostic system such as Aloka SSD-4000, the backplane board may be responsible for connecting key components such as the host, probe interface, image processing module, etc., to ensure normal communication and data transmission between them.
3. Backplane board maintenance and troubleshooting
Fault phenomenon: If Aloka SSD-4000 fails to boot, image display is abnormal, and the probe cannot be recognized, it may be related to the backplane board.
Repair steps:
Preliminary inspection: First check whether the connectors, sockets, etc. on the backplane are loose, damaged or contaminated.
Voltage measurement: Use a multimeter or other tools to measure the voltage and current on the backplane to ensure that they are within the normal range.
Signal transmission test: Use a test instrument to check whether the signal transmission path on the backplane is unobstructed.
Replacement and repair: If the backplane is confirmed to be faulty, it may be necessary to replace it with a new one or perform professional repairs.
Precautions: When repairing the backplane, be sure to follow the relevant safety operating procedures to ensure the safety of the operator. At the same time, since the backplane is part of a precision electronic device, repairs should be performed by professionals to avoid further damage to the equipment due to improper operation.
