Aloka F75 EP557700BB Backplane Board Ultrasonic device

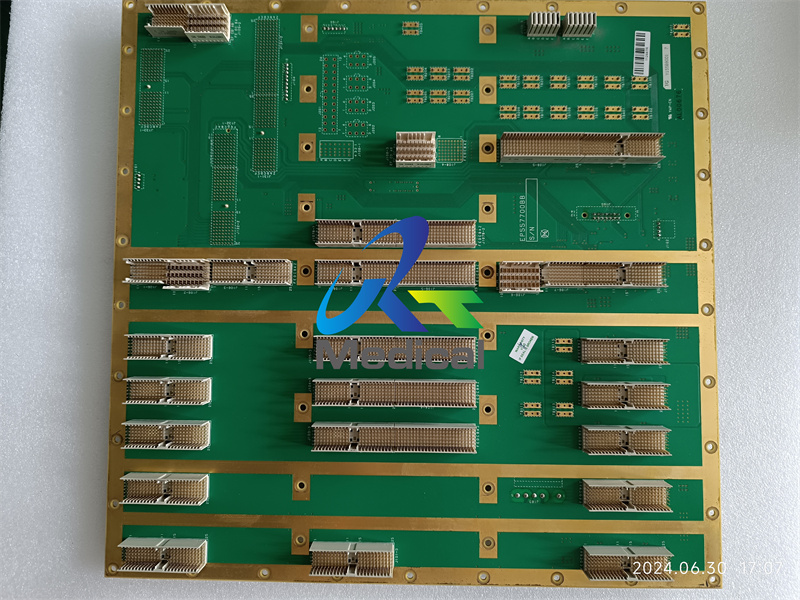

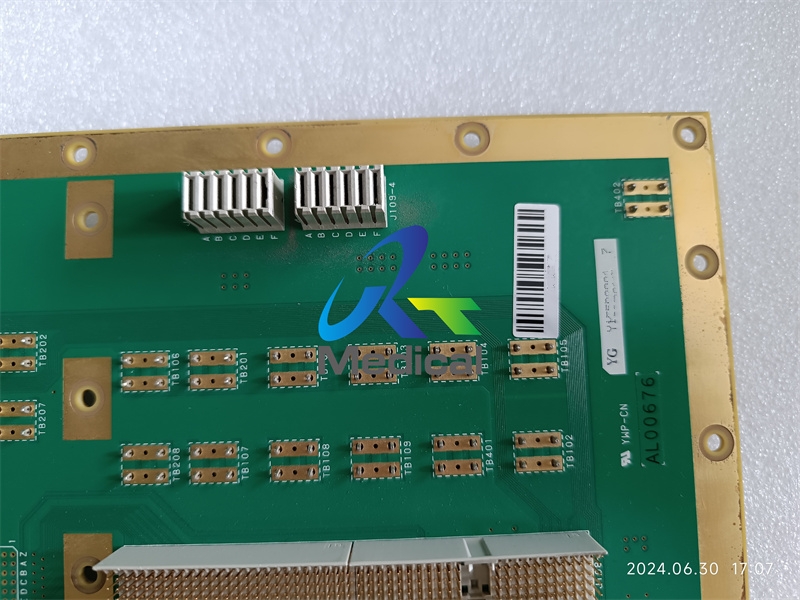

Aloka F75 EP557700BB Backplane Board

About Aloka F75

1. Basic composition
The Aloka F75 ultrasonic medical instrument mainly consists of a monitor (touch screen), an operation panel, and a main body. These parts work together to enable doctors to easily perform ultrasound diagnosis.

2. Operation Guide
Moving and unpacking: When moving the Aloka F75, make sure it is properly packed to avoid damage to the instrument components. When unpacking, lock the front wheels, lower the console (including the operation panel, touch screen, and monitor) by pressing the front outer pedal, and raise it by the console handle. To adjust the position of the console, you can hold the lever inside the console handle to operate.
Cleaning: Use a lint-free cloth dipped in water to clean the touch screen and monitor, and avoid using detergent or alcohol. The rest of the instrument can be wiped according to normal disinfection procedures.
Power on and off: Connect the EUS connector cable to the port on the front panel of the probe and the main unit, and press and hold the power button to turn the instrument on or off. The power switch on the back of the main unit can remain on.
Basic setup: Select the desired probe and preset on the touch screen (both should be displayed in yellow), press the B GAIN key to freeze the image, and ensure that the image is frozen before changing the probe, unplugging the EUS cable, or turning off the power.
Create patient files: Patient files can be created in two ways: manually input or imported from a server. When manually inputting, use the trackball and enter key to move the cursor on the monitor, enter the necessary information such as the patient ID, and select "OK" to save and return to scan mode. When importing from a server, select "New Patient", use the trackball and enter key to navigate the cursor, select "Find" to download the latest list on the hospital server, and then select "Worklist" to display the list and select the patient.
Image Control: Includes adjustment of B-mode image brightness, depth, frequency, contrast, and focus.
Doppler Mode: Supports Doppler imaging, which can be used to observe blood flow.
Measurement and Annotation: Provides measurement tools and annotation functions to facilitate doctors to conduct further diagnosis and analysis.
File Storage: Supports storing images and video clips on the Aloka hard drive. At the same time, it also supports searching for files on the drive and copying them to a USB device.

3. Application and Evaluation
The Aloka F75 ultrasonic medical instrument is favored by medical professionals for its high performance and ease of use. It is commonly used for ultrasound examinations in many fields such as cardiac, abdominal, gynecological, and obstetrics. Doctors generally believe that this instrument performs well in image quality, ease of operation, and diagnostic accuracy. At the same time, it also has rich functions and flexible operation methods to meet the diagnostic needs of different patients.

4. Precautions
When using Aloka F75, relevant operating procedures and safety guidelines should be followed.
Regularly maintain and service the instrument to ensure its normal operation and extend its service life.
During storage and transportation, care should be taken to protect the various components of the instrument from damage.

Wide variety of parts, over 1000 pcs in stock, involved in popular brands and systems(GE, Hitachi Aloka,Philips,Siemens,Toshiba,Esaote......)

Experienced & specialize after-fix technical support team.

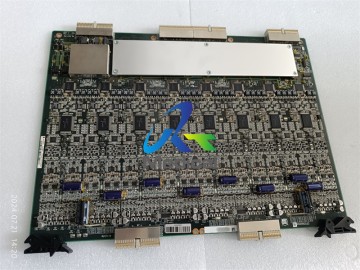

Other Aloka related ultrasonic components we can offer:
