Aloka Alpha7 EP540100BC Connector Board Ultrasound Assy

Aloka Alpha7 EP540100BC Connector Board Ultrasound Assy

About Aloka ALPHA7

1. Equipment Overview
Aloka ALPHA7 color ultrasound is a powerful and stable color ultrasound device, which is widely used in the field of medical diagnosis. With its excellent image quality and accurate diagnostic capabilities, it has won wide acclaim from doctors and patients.

2. Technical Features
High-resolution images: Aloka ALPHA7 color ultrasound uses advanced ultrasound technology to generate high-resolution images, providing doctors with clear diagnostic basis.
Multiple probe options: The device is equipped with a variety of probes, such as abdominal, superficial, intracavitary, etc., to meet the inspection needs of different parts. At the same time, the probe has excellent sensitivity and clarity, and can capture more detailed information.
Trackball operation: Aloka ALPHA7 color ultrasound is equipped with a trackball, which is convenient for doctors to perform operations such as image movement and zooming. However, the trackball may also fail due to excessive frequency of use, untimely cleaning of the coupling agent or natural aging, and it needs to be replaced in time.
Powerful diagnostic functions: The device has a variety of diagnostic functions, such as two-dimensional imaging, color Doppler imaging, etc., which can comprehensively evaluate the patient's health status. At the same time, it also has a wealth of measurement and analysis tools to help doctors make accurate diagnoses.

3. Common faults and repairs
Interference problem: During use, Aloka ALPHA7 color Doppler ultrasound may experience interference. This may be caused by a channel board failure. At this time, the channel board needs to be replaced to solve the problem.
Probe damage: If a probe has no echo during use, it may be caused by probe damage. At this time, you can try to replace other probes for testing. If it is confirmed that the probe is damaged, you need to replace a new probe.
Trackball failure: Trackball failure is one of the common faults of Aloka ALPHA7 color Doppler ultrasound. If the trackball fails to move up and down, it may be caused by damage to the rotation axis of the trackball or failure to clean the coupling agent in time. At this time, you can try to clean the coupling agent or replace the trackball to solve the problem.
Power supply or motherboard failure: If the device freezes or freezes during the boot process, it may be caused by a power supply or motherboard failure. At this time, you need to check whether the power output is normal and try to replace the motherboard to solve the problem.

4. Precautions for use
Regular maintenance: In order to ensure the normal operation and extend the service life of Aloka ALPHA7 color Doppler ultrasound, regular maintenance and care are required. Including cleaning the surface of the equipment, checking whether the components such as the probe and the connecting wire are intact, etc.
Standard operation: When using the ALPHA7 color Doppler ultrasound machine, you need to follow the standard operating procedures to avoid damage or malfunction of the device due to excessive use or improper operation.

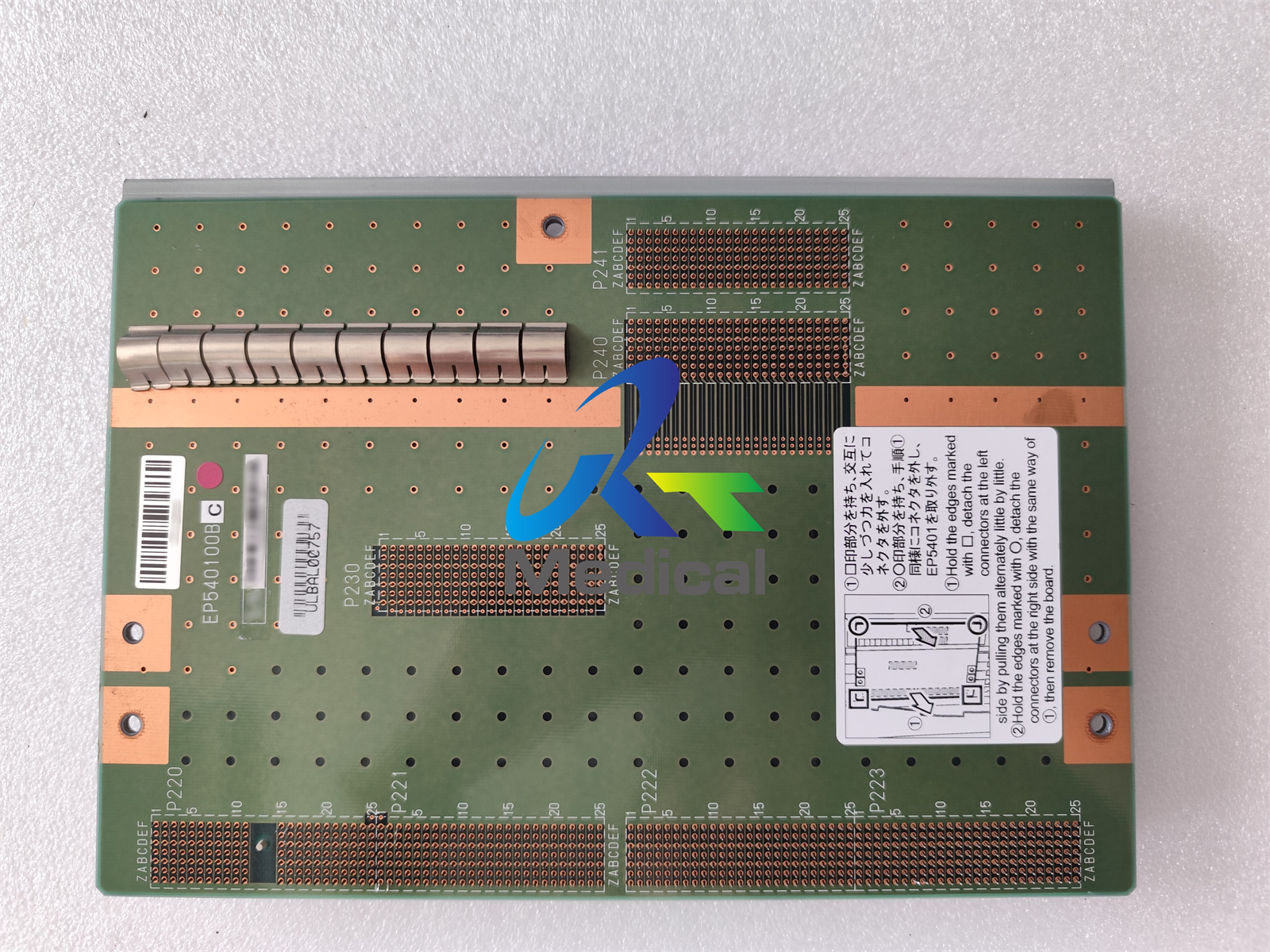

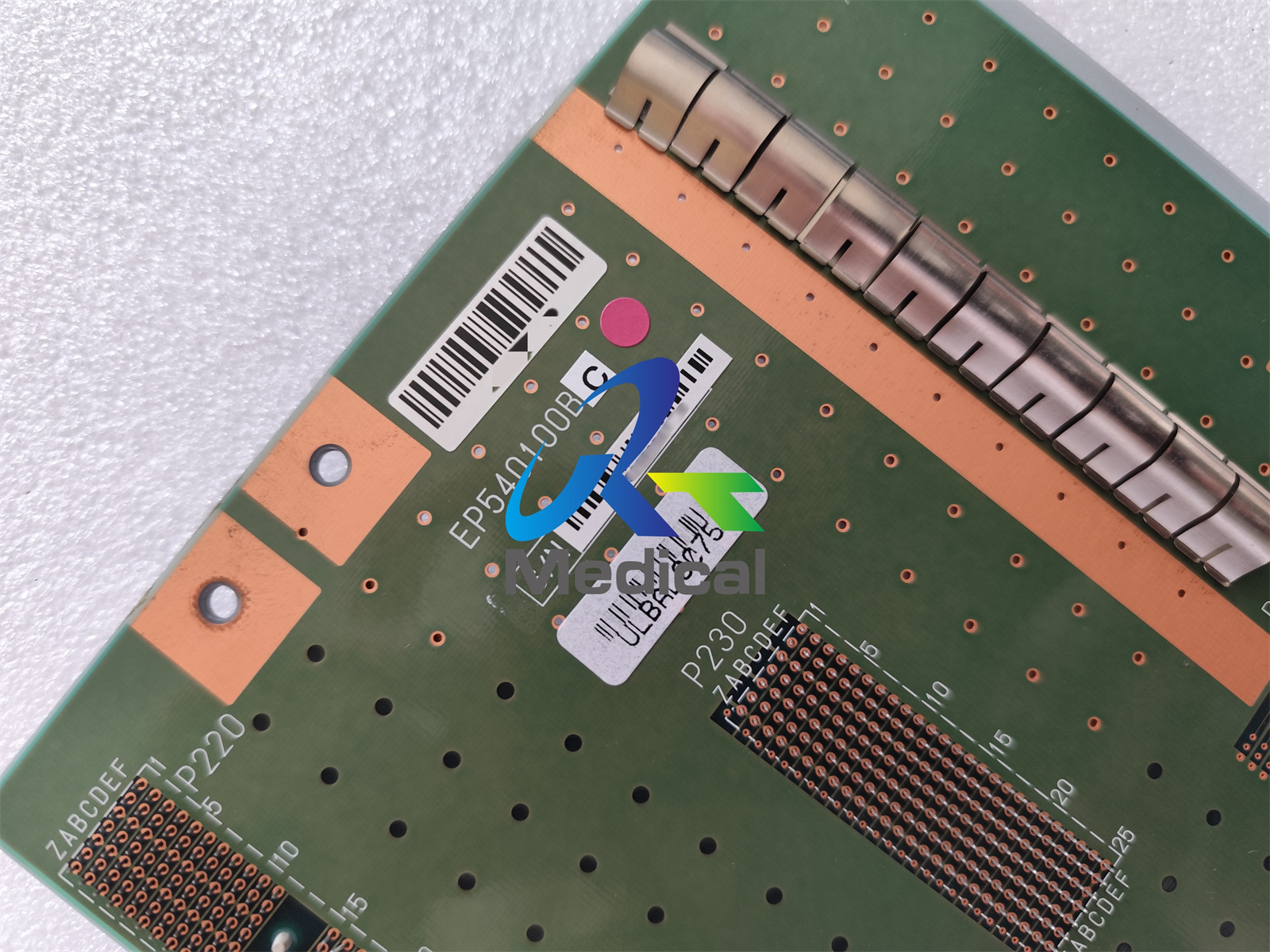

Aloka Alpha7 Connector Board

1. Function
Connector Board is an important part of Aloka Alpha7 color Doppler ultrasound equipment. It is responsible for connecting various components inside the equipment, such as probes, mainboards, power supplies, etc., to ensure that signals and data can be transmitted accurately and efficiently. The design of the connector board usually takes into account the integrity of the signal, anti-interference ability and reliability of the connection.

2. Features and Advantages
High reliability: The connector board adopts high-quality materials and advanced manufacturing processes to ensure stable connection performance during long-term use.
Easy maintenance: The design of the connector board usually takes into account easy disassembly and replacement, which is convenient for maintenance personnel to maintain and upgrade the equipment.
Compatibility: The connector board of Aloka Alpha7 has good compatibility with other components of the equipment to ensure that the equipment can work properly.
3. Maintenance and care
Regular inspection: Check the connector board regularly to ensure that it is not loose, damaged or corroded.
Cleaning and maintenance: Use professional cleaning agents and tools to clean the connector board to remove pollutants such as dust and grease to maintain its good conductivity.
Replacement and upgrade: If the connector board is damaged or aged, it should be replaced or upgraded in time to ensure the normal operation of the equipment.
IV. Precautions
Professional operation: When replacing or repairing the connector board, it should be operated by professionals to avoid equipment damage or failure due to improper operation.
Safe use: When using the Aloka Alpha7 color ultrasound device, relevant safety regulations and operating procedures should be followed to ensure the safety of personnel and equipment.

Wide variety of parts, over 1000 pcs in stock, involved in popular brands and systems(GE, Hitachi Aloka,Philips,Siemens,Toshiba,Esaote......)

Experienced & specialize after-fix technical support team.

Other Aloka related ultrasonic components we can offer:
